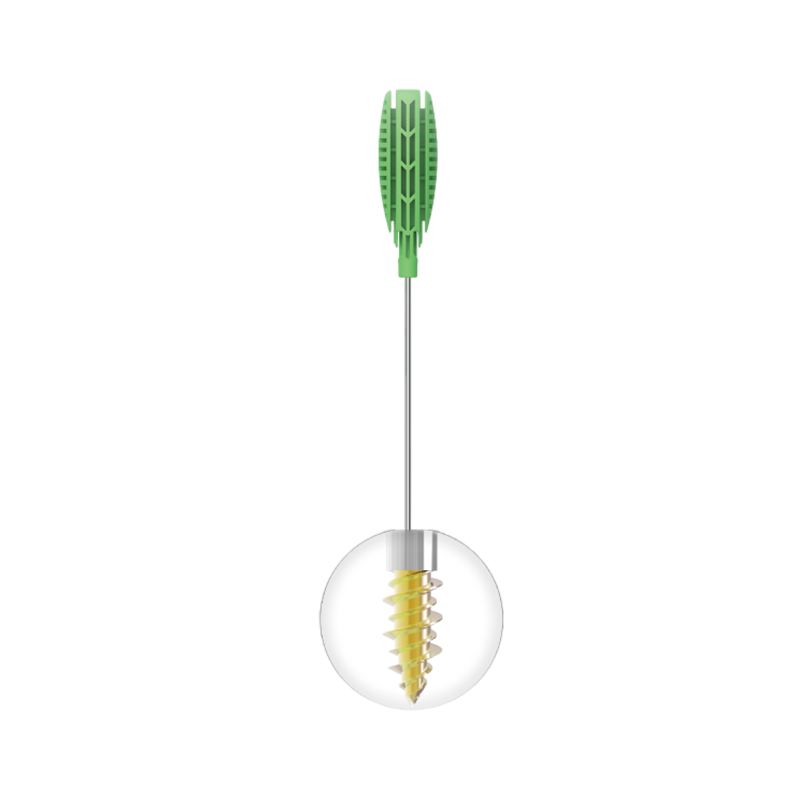

Suture Anchor features hexagon drive, sharp tip and high‑low double‑thread design for easy, multi‑angle implantation without pre‑drilling. Its arc suture‑hole lowers surgical friction. Made of titanium alloy, it delivers reliable torsional and pull‑out resistance for soft‑tissue fixation.
Hexagon Drive: Easy operation; Multi‑angle implantation; More flexible; Can be implanted twice during operation.
Titanium Alloy Material: Excellent biocompatibility; Anchor head sharp design; No need to pre‑drill, easier to implant; The edge arc design of suture hole on the head of anchor; To reduce friction during surgery.
High and low double thread design: Stronger torsional strength and pull‑out resistance; Quicker screw‑in and shorter operation time.
| Model | External Diameter（mm） | Anchor Length（mm） | Total Length（mm） |
| T20‑φ 2.0×7.5 | φ 2.0 | 7.5 | 184.3 |
| T12‑φ 2.8×11.5 | φ 2.8 | 11.5 | 251.4 |
| T22‑φ 3.5×12 | φ 3.5 | 12 | 255.2 |
| T22‑φ 5.0×15.5 | φ 5.0 | 15.5 | 257.5 |
| T22‑φ 6.5×16.3 | φ 6.5 | 16.3 | 260.7 |
