Mini Locking Plate offers multi‑size 2.0/2.4/2.7 implant series with diverse shapes for small‑bone fractures. It delivers angle‑stable fixation for delicate osseous structures while matching the anatomical features of small fragment sites.
Mini Locking Plate supplies abundant configurations including straight, T‑type, Y‑type, L‑type and condyle‑shaped plates to cope with varied small‑bone fracture morphology.
Mini Locking Plate features low‑profile plate contour, reducing soft‑tissue irritation after implantation for improved postoperative comfort.
Mini Locking Plate covers three common specifications 2.0, 2.4 and 2.7, offering flexible size selection for different bone thickness.
| Name | Length（mm） | Holes |
| 2.0 Mini Straight Locking Plate | 31-74 | 4-10 |
| 2.0 Mini Reconstruction Locking Plate | 18-102 | 3-12 |

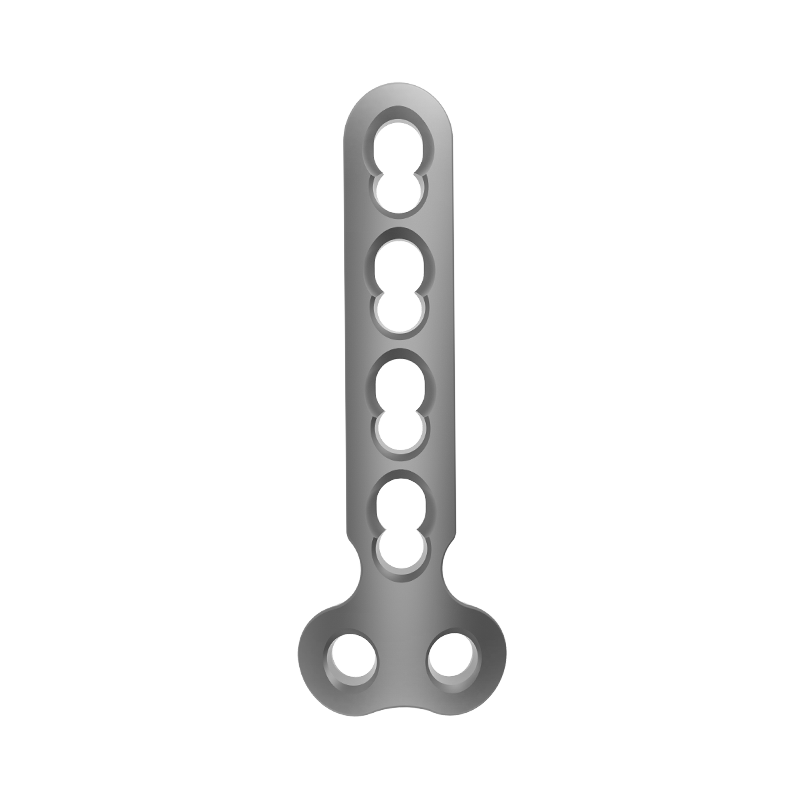

| 2.0 Mini T Type Locking Plate (head 2 holes) | 25-59 | 3-7 |
| 2.0 Mini T Type Locking Plate (head 3 holes) | 25-59 | 3-7 |
| 2.0 Condyle Locking Plate | 27-54.2 | 3-7 |
| Mini 2.0 Y Type Locking Plate | 27-54.2 | 3-7 |
| 2.4 Mini Straight Locking Plate | 36-86 | 4-10 |
| 2.4 Mini Reconstruction Locking Plate | 21-108 | 3-12 |
| 2.4 Mini L Type Locking Plate | 23.5-76.8 | 2-8 |
| 2.4 Mini Oblique L Type Locking Plate | 23.5-76.8 | 2-8 |
| 2.4 Mini T Type Locking Plate (head 2 holes) | 29-58 | 3-7 |
| 2.4 Mini T Type Locking Plate (head 3 holes) | 28-57 | 3-7 |
| 2.4 Condyle Locking Plate | 30-59 | 3-7 |
| Mini 2.4 Y Type Locking Plate | 31-66 | 3-8 |
| 2.7 Mini Straight Locking Plate | 40-94 | 4-10 |
| 2.7 Mini Reconstruction Locking Plate | 24-98 | 3-12 |
| 2.7 Mini L Type Locking Plate | 24.5-69.5 | 2-8 |
| 2.7 Condyle Locking Plate | 33.6-65.6 | 3-7 |
| 2.7 Mini T Type Locking Plate | 32-39.5 | 3-4 |
| 2.7 Mini Oblique L Type Locking Plate | 26.8-76.8 | 2-8 |
